Tombstones for Machining

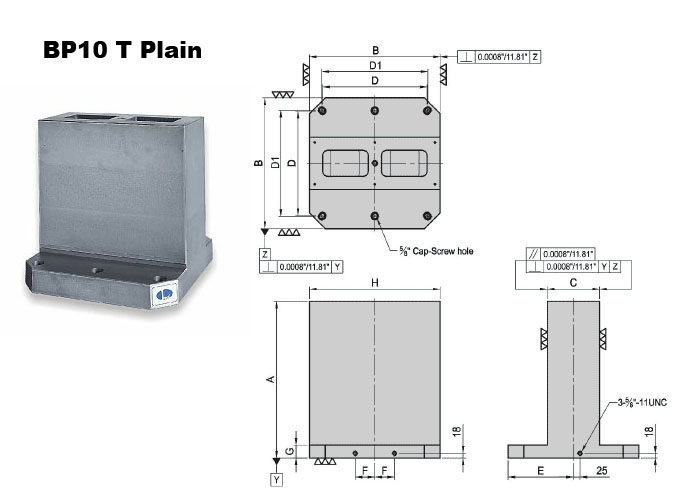

T-Type With Plain Sides
.jpg)
Material: FC300 series high strength cast iron
stress relieved
Mounting Holes: Designed to fit all INCH &
MM pallets (other configurations available)
Accuracy: Flat, parallel & square < .001″ over 12″
Features:
-
Fully machined all sides
-
Side edge locating holes on base
-
Top cover to keep out chips & coolant
-
Lifting eyebolt
We can custom build any tombstone to fit your special needs
NOW IN STOCK: 300 mm
ALL TOMBSTONE ARE DESIGNED TO FIT BOTH IN & MM PALLETS
|
MODEL NUMBER |
A |
B BASE |
C |
D |
D1 |
E |
F |
G |
H |
Mounting
Holes |
Weight |
Price |
|
BP10-300300-0500 |
19.69 |
300 |
11.81″ |
3.15 |
250 |
10.00 |
5.90 |
40 |
1.97 |
11.81 |
4 |
265 |
$1800 |
|
BP10-400400-0500 |
19.69 |
400 |
15.75″ |
5.91 |
320 |
11.81 |
7.87 |
55 |
1.97 |
15.75 |
4 |
375 |
$2000 |
|
BP10-400400-0650 |
25.59 |
520 |
$2200 |
|
BP10-500500-0600 |
23.62 |
500 |
19.69″ |
7.87 |
400 |
16.00 |
9.84 |
75 |
1.97 |
19.69 |
6 |
584 |
$2600 |
|
BP10-500500-0750 |
29.53 |
820 |
$3000 |
|
BP10-630630-0700 |
27.56 |
630 |
24.80″ |
9.84 |
500 |
20.00 |
12.4 |
100 |
1.97 |
24.8 |
6 |
970 |
$3400 |
|
BP10-630630-0850 |
33.47 |
1226 |
$4400 |
|
BP10-800800-0800 |
31.5 |
800 |
31.50″ |
11.81 |
640 |
25.00 |
15.75 |
135 |
1.97 |
31.5 |
6 |
1544 |
$5700 |
|
BP10-800800-1000 |
39.37 |
1934 |
$7500 |
Prices Subject To
Change Without Prior Notification
|
