Precision CNC
Tombstones for Machining
T-Type Modular
Accepts BP14/15 Sub Plates
Material: FC300 series high strength iron – stress
relieved
Mounting Holes: Designed to fit all INCH &
MM pallets(other configurations available)
Accuracy: Flat, parallel & square < .001″ over 12″
Features:
-
Designed to accept QC Sub – Plate
-
Either Plain or Tapped & Bushed
-
3 Point mounting system
-
Fast & Accurate
We can custom build any tombstone to fit your special needs
ALL TOMBSTONE ARE DESIGNED TO FIT BOTH IN & MM PALLETS
|

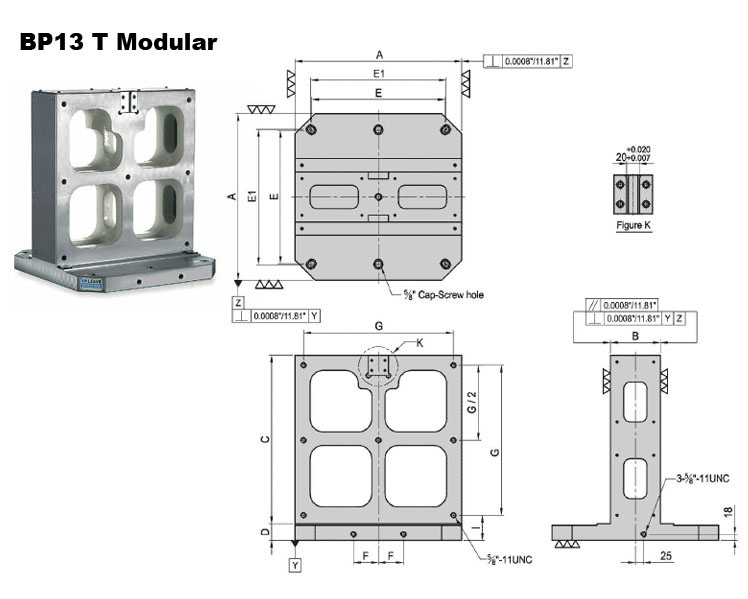

MODEL NUMBER |
A BASE |
B |
C |
D |
E |
E1 |
F |
G |
I |
Mounting
Holes |
Weight |
Price |
|
BP13-400400-0450 |
400 |
15.75″ |
5.12 |
15.94 |
1.97 |
320 |
11.81 |
55 |
13.78 |
70 |
4 |
267 |
$2,600 |
|
BP13-500500-0555 |
500 |
19.69″ |
5.91 |
19.88 |
2.17 |
400 |
16.00 |
75 |
17.72 |
75 |
6 |
474 |
$3,100 |
|
BP13-630630-0690 |
630 |
24.80″ |
8.66 |
25 |
2.36 |
500 |
20.00 |
100 |
22.83 |
80 |
6 |
750 |
$4,300 |
|
BP13-800800-0860 |
800 |
31.50″ |
9.85 |
31.69 |
2.36 |
640 |
25.00 |
135 |
29.53 |
80 |
6 |
1103 |
$5,800 |
Prices Subject To
Change Without Prior Notification
|
